Mill-Max Hotswap Sockets

Mill-Max Hotswap Sockets

Regular price$14.50
/
Shipping calculated at checkout.

Mill Max Sockets
  • Low stock - 3 items left
  • Inventory on the way

Mill-Max Sockets are intended to turn your soldered PCB into a hot-swappable PCB!

Please note: 2 Mill-Max Sockets are required per key switch. 3x packs of 50 will complete a 65% keyboard.

We currently offer 7305 & 3305 sockets as they are compatible with both low and high-profile cases, and in terms of pricing falls in the mid-to-high end ranged sockets.

Sold in packs of 50.

Specs:

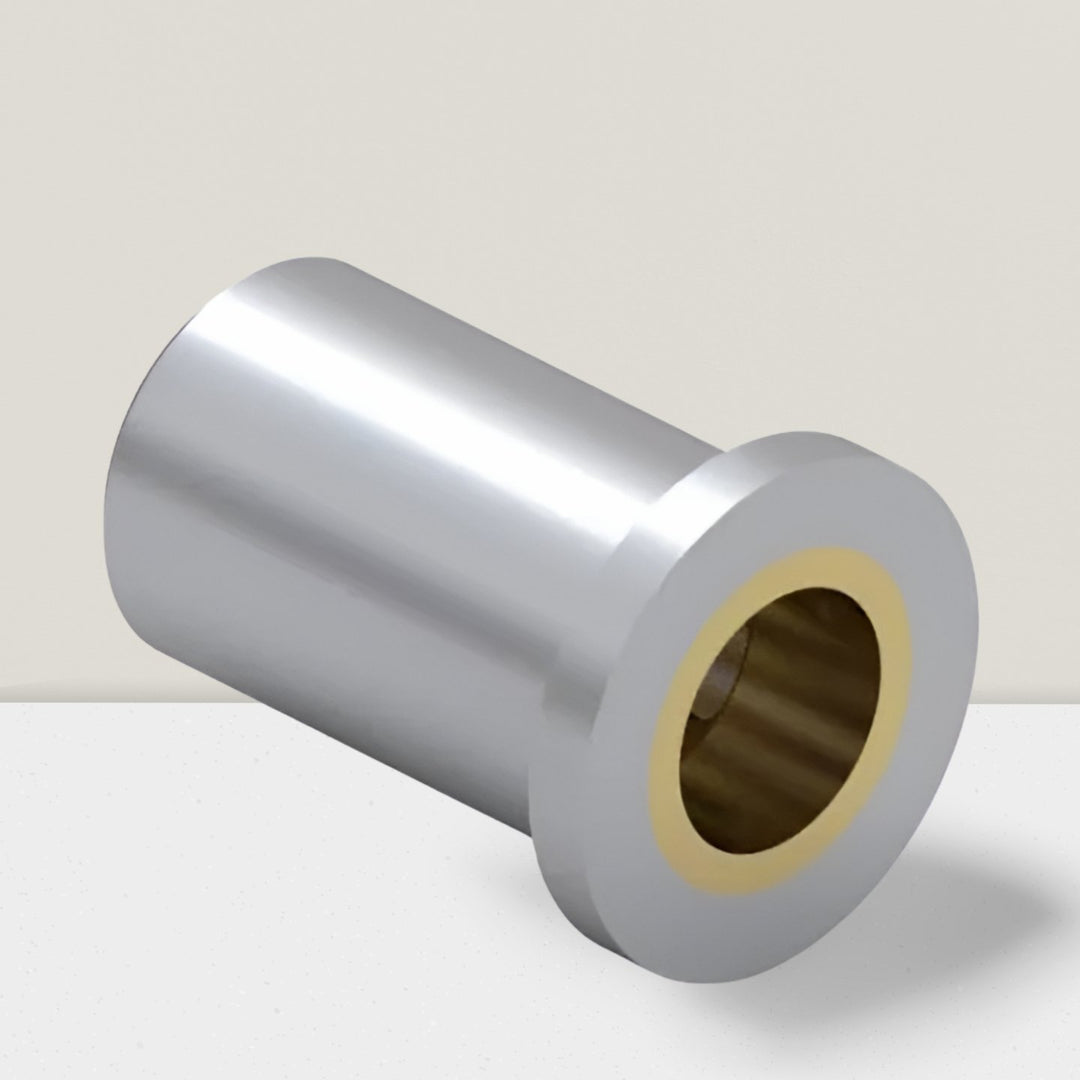

  • 7305-0-15-15-47-27-10-0
    • Contact Material: Beryllium Copper Alloy
    • Plating: Gold over Nickel
    • Length: 2.67mm
    • Outside Diameter: 1.96mm
    • $0.29 per socket

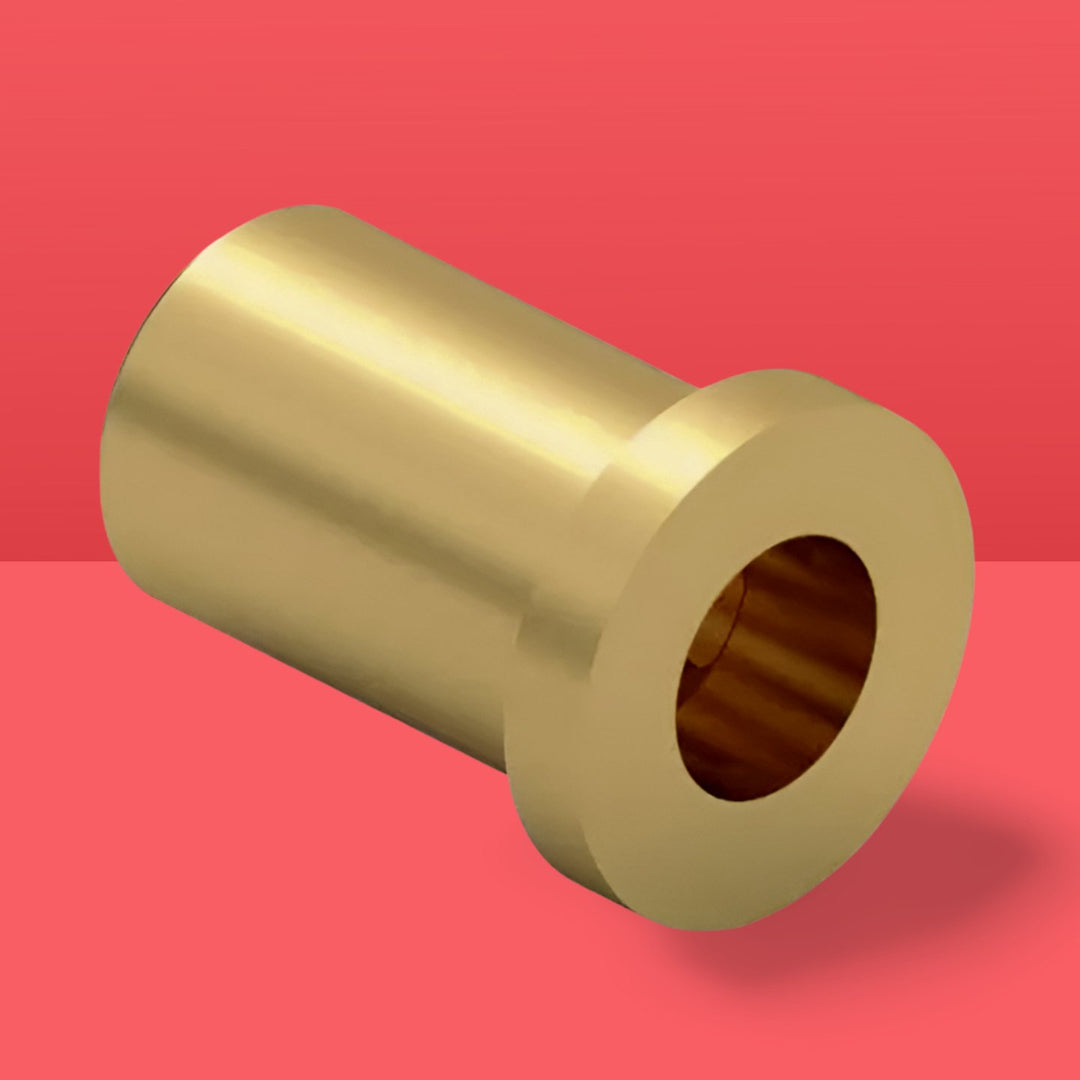

  • 3305-0-15-80-47-27-10-0
    • Contract Material: Beryllium Copper
    • Plating: Gold
    • Length: 2.67mm
    • Outside Diameter: 1.47mm
    • $0.32 per socket
